1Introduction

This manual explains the installation, configuration and usage of the payment module for PrestaShop and ConCardis.

Before beginning with the installation, please make sure that you are in possession of all necessary data:

  • You receive your PSPID and password after conclusion of contract and opening of a demo account directly from ConCardis
  • PrestaShop payment module from sellxed.com/shop
  • Access data to your server and shop

In case you do not yet have a contract with ConCardis, you can gladly acquire it directly through us.

1.1Procedure of the Installation

In this document you will find all information important for the installation of the module. It is important that you strictly follow the described steps. Only by doing so, a secure usage in compliance with all security regulations can be guaranteed.

  1. Configuration of the administration interface of ConCardis.
  2. Configuration of the basic settings of the payment module
  3. Configuration of the payment methods
  4. Carrying out a test purchase by means of the attached test data at the end of this document
  5. If the test was successful, copy all data from your test account into the ConCardis live account.
Installation Service

In case of problems, our support team is at your disposal during regular business hours under: http://www.sellxed.com/en/support.
Furthermore, you have the option of ordering our installation service: http://www.sellxed.com/shop/en/integration-und-installation.html

.htaccess Directory Protection

In order to test the module, any kind of directory protection or IP blocking on your server must be deactivated. This is crucial; otherwise the payment feedback of ConCardis might not get through to the shop.

2Configuration ConCardis - Back-End

For the configuration, log into the ConCardis back-end:

The settings carried out on the following pages are a precondition for the configuration of the main module.

The configuration of the settings is done under Configuration > Technical Information. In the following chapter the chapter titles correspond to the tabs in the back office of ConCardis. For some parts screenshots will be added for a more precise illustration. Should a specific setting not be mentioned then it has no importance for the configuration of the payment module and can be ignored by you as such.

2.1Tab: Global Transaction Parameters

Under the tab Global Transaction Parameters you define the basic settings for the processing of transactions.

2.1.1Default operation code and default data capture procedure

We recommend choosing Sale and "Automatic data capture by our system at the end of the day". All incoming payments will be directly processed and debited. If you are using transaction management and deferred capturing we strongly advise to use these settings. In case you have saved different settings in the module, then the module's settings will overwrite those of the ConCardis.

2.1.2Payment Retry

We recommend entering 10.

2.1.3Processing for Individual Transactions

We recommend the option "Online but switch to offline when the online acquiring system is unavailable"".

2.2Tab: Global Security Parameters

Here you define the security parameters for the interaction between your shop and the gateway of ConCardis.

2.2.1Hashing Method

The sellxed payment modules support all hashing methods. In order for the module to function, it is crucial that the settings saved with ConCardis correspond to those made in the back-end of your shop.

In order to guarantee a smooth processing of payments, we recommend the following hashing methods:

  • Each parameter, followed by the pass phrase. It may be that this parameter is not visible in your shop. In this case it is transmitted automatically.
  • Hash Algorithm = SHA 512
  • Character Encoding = UTF-8
Figure 2.1: Configuration of the SHA-Hash.

These settings must be identical to the settings in the main module (cf. Configuration of the main module). Please note that the character encoding in our modules is set to UTF-8 per default and cannot be changed.

2.3Tab: Payment Page

The checkbox under Cancel Button should be ticked. The field under Back Button Redirection can be left empty.

2.4Tab: Data and Origin Verification

The tab Data and Origin Verification defines security elements concerning the transmission of data and the loading of the payment page.

2.4.1Checks for e-commerce & Alias Gateway

The first box under "URL of the merchant page" can remain empty.

The box "SHA-IN pass phrase" is a security element of the payment verifying its authenticity. Therefore it is important that you use the same pass phrase in the back end and in the shop.

Customweb SHA-String Generator

Please note that only ASCII characters may be used for SHA pass phrases. Please use our SHA pass phrase generator so that you do not enter invalid characters.

2.4.2Checks for ConCardis DirectLink and ConCardis Batch (Automatic)

DirectLink allows you to use the Hidden Authorisation (Alias Gateway) as well as the direct debiting of transactions within your shop. If you have activated DirectLInk in your account and wish to use this feature, enter the same SHA-IN pass phrase in the box "SHA-IN pass phrase" as above.

Further information on the configuration of DirectLink can be found under Configuration Hidden Authorisation.

2.5Tab: Transaction Feedback

In the tab Transaction Feedback the response of ConCardis to the shop is controlled.

2.5.1HTTP Redirection in the Browser

The parameters in the transaction feedback determine the processing in the shop after payment has been completed. However, the four fields for "HTTP Redirection in the Browser" can remain empty because they will be configured through the settings of our module.

2.5.2Direct HTTP-Server-to-Server-Request

  • The "Timing of the Request" must be set to Online but switch to a deferred request when the online requests fail. As "Request Method" you must select "POST".
  • Un-tick the option "I would like ConCardis to display a short text to the customer on the secure payment page if a redirection to my website is detected immediately after the payment process."
  • In the section General make sure that the Option: "I would like ConCardis to display a "processing" message to the customer during payment processing." is un-ticked too.

URL on which the merchant wishes to receive a deferred HTTP request, should the status of a transaction change offline.

For the Transaction Feedback please enter the URL that is generated in the main module. More information can be found under the section Transaction Feedback

All orders have the status 'Pending'

Should you notice during the tests that orders are not registered in the shop and that no confirmation email is sent, this might be due to a failure of the transaction feedback. Make sure that your firewall is not blocking any request coming from ConCardis.

Figure 2.1: Configuration of the feedback URL for the HTTP-Feedback.
Deferred Requests und Time Out

ConCardis sends the notification requests with a time out of 20 sec. Should your shop not respond to the HTTP Request within this time, a time out error will be sent. If you set the option to Online but switch to a deferred request when the online requests fail the request will be retrieved four times in ten minute intervals.

Please note that, depending on your ConCardis subscription, it is possible that the only option available is Always online (immediately after the payment to allow customization of the response seen by the customer). In this case, always select this option.

2.5.3Dynamic e-Commerce Parameters

With this option you control which parameters are sent in the response from ConCardis. In order for payments to effectively be evaluated in your shop, all necessary parameters must be sent. It is possible that you have other options available to select. Just make sure that you move every parameter from available to selected except for the following:

  • PM
  • CN
  • SUBBRAND
  • AAVADDRESS
  • AAVCHECK
  • AAVMAIL
  • AAVNAME
  • AAVPHONE
  • AAVZIP
Figure 2.1: Configuration of the Dynamic E-Commerce Parameters. Your selection may look differently depending on your subscription with ConCardis.

2.5.4Dynamic Parameters

With this option you control which parameters are sent in the response from ConCardis. In order for payments to effectively be evaluated in your shop, all parameters must be sent. It is possible that you have other options available to select. Just make sure that you move every parameters from available to selected.

Figure 2.1: Configuration of the Dynamic Parameters. Your selection may look differently depending on your subscription with ConCardis.

2.5.5Security for Request Parameters

The box "SHA-OUT pass phrase" is an additional safety mechanism for payments. Here too must the entered pass phrase be identical to the one in your shop. However, please make sure that your SHA-OUT pass phrase differs from the SHA-IN pass phrase. .

Customweb SHA-String Generator

Please note that only ASCII characters may be used for SHA pass phrases. Please use our SHA pass phrase generator so that you do not enter invalid characters.

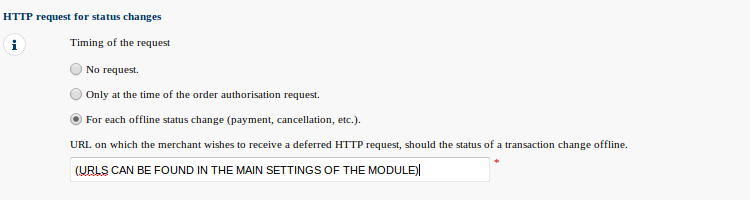

2.5.6HTTP Request for Status Changes

You have the option to be informed about status changes by ConCardis directly. This feature is especially useful when a payment has an uncertain status because the acquirer system could not be reached. The payment status will be updated automatically. Furthermore this feature allows you to capture payments inside ConCardis and have synchronize them with your shop

In order to use this feature you will have to select the option For each offline status change (payment, cancellation, etc.).. Afterwards just copy the URL into the field that is displayed in the Setup of your Main configuration (cf. Transaction Feedback). Enter the URL shown there into the field 'URL on which the merchant wishes to receive a deferred HTTP request, should the status of a transaction change offline.'

Figure 2.1: Enter the URL from the Setup of the Main Configuration.

2.5.7Dynamic Parameters

Move all parameters from available to selected.

2.6(Dynamic-)Template

You can now find the option template via Configuration > Template. The Dynamic Template enables you to design the payment mask for the credit card data so it matches your web shop. Should the field for the dynamic template not be visible, please contact ConCardis. It may be that you have to activate additional options in your account.

For the usage of the dynamic template, please save the following settings:

  • Enable JavaScript on template: 'No'
  • Our modules do not allow "usage of static template". So click 'No'
  • Allow usage of dynamic template: 'Yes'
  • In case you are using the dynamic template, enter the host name, i.e. https://Your-Shop.com in the lower box. The upper one must remain empty.
Figure 2.1: Configuration of the Dynamic Template.
Dynamic Template

Please note that you require an SSL certificate for the usage of the dynamic template. Otherwise the CSS-Resources will not be reloaded in certain browsers which might lead to layout issues.

The activation of the dynamic template in the shop is explained here.

2.7Hidden Authorisation, Ajax Authorization (FlexCheckout - Hosted Tokenization Page), External Checkout & Alias Manager

2.7.1Preconditions

For the usage of the Hidden Authorization, Ajax Authorization (FlexCheckout), Alias Manager or External Checkout during the payment processing, certain adjustments are necessary in the back-end of ConCardis. Please check first if the options are activated in your account under Account > Your Options.

Figure 2.1: Make sure to activate the OPC and DPR options.

If an option is not available please contact ConCardis.

Options and their Meanings:

  • For the usage of the Hidden Authorization you require the option OnePageCheckout (OPC).
  • For the usage of the Ajax Authorization (FlexCheckout) you require the option OnePageCheckout (OPC) and DirectLink (DPR).
  • If you additionally want to use the Alias Manager, you also need the option Alias Manager (RECX).

In case these options are not be available, please contact ConCardis directly.

2.7.2Setting Up an API-User

If you want to use the features of the transaction management or the hidden authorization (Alias Gateway) you will need to set up an API user as described herafter:

Go to Configuration > User Administration and click on 'New User'. Choose a User ID and insert a user name of your choice and your e-mail address. Select Administrator without user manager as a profile. It is furthermore important that you select the option Special user for API (no access to the administration). If you do not see this option, you will need to let ConCardis activate the option DirectLink for your account.

Password of the API-User

The User ID and the API-user password may only contain letters and numbers. Special characters aren't permitted.

Note down the access data. They will have to be inserted in the respective place in the configuration of the main module.

2.7.3Usage of External Checkouts

For the usage of external checkouts there are additional options required. External checkouts, such as MasterPass are payment methods, which offer the possibility to transfer addresses automatically.

The usage of the external checkouts asks for the option Direct Link and for the activation of payment method in your account.

For the performance of the payment method, you have to make sure that under Technical Information > Transactionfeedback in the section Direct Link all parameters selected are shifted

Figure 2.1: Response Parameter for Direct Link.

3Module Installation in the PrestaShop Shop

At this time you should already be in possession of the module. Should this not be the case, you can download the necessary files in your customer account in the sellxed shop (Menu "My Downloads Downloads"). In order to download the module in your shop, please carry out the following steps:

  1. Create a back-up of your shop.
  2. Extract the content of the ZIP file that you have downloaded in your customer account.
  3. Copy the entire content of the folder "files" into the main directory of the server of your shop respectively to the folder where the plugins are copied normally. In order to do so, use your usual ftp program. Make sure that the folders aren't replaced but merely merged.
  4. If you haven't yet done so, log back into your shop.

The configuration consists of two steps. The first step is the configuration of the main module with all the basic settings (cf. Configuration of the Main Module). During the second step you can then carry out individual configurations for each payment method . This allows for full flexibility and perfect adaptation to your processes.

Create back-ups!

Please create a back-up of the main directory of your shop. In case of problems you will then always be able to return your shop to its original state.

We furthermore recommend testing the integration on a test system. Complications may arise with third party modules installed by you. In case of questions, our support is gladly at your disposal.

3.1Configuration of the Main Module

You will find the settings for the module under Modules, in the group Checkout , ConCardis Integration. Install the module and open the configuration mask by clicking Configure. Enter the individual options such as described above in the configuration of the administration interface of ConCardis. You will find information on the individual options directly in the additional texts in the module

3.2Configuration of the Payment Method

After having successfully installed the main module, you can find the supported payment methods under Modules, in the group Payments and Gateways. Install each payment method you wish to offer in your shop. In order to configure the module, click 'Configure'. You can save individual settings for each payment method and thereby optimally adapt the payment to your processes. The most central are explained in more detail in this manual.

3.3Defining the URL for the Transaction Feedback

To ensure correct payment processing in your shop, at least one Feedback URL has to be provided in the ConCardis configuration. The URL to be entered can be found in your PrestaShop Shop under the menu item Modules > ConCardis specifically under Setup

3.4Shop ID

In the case of a multi-store set up (cf. chapter: Multi-Store), the parameter Shop ID identifies the shop's request and, therefore, redirects the feedback of ConCardis based on the shop ID.

3.5Order Prefix

With the option order prefix you can define your own order scheme for the transmission to ConCardis. This option helps you identify to which shop a transaction the back-end of ConCardis is related to. The tag "{id}" will automatically be replaced be the consecutive order number.

3.6Selecting the Authorisation Method

You can choose between two options of authorizing credit card payments. By selecting one of the two under the option 'Authorisation Methods', you define how you want to process the individual payment methods.

Further information on the various authorisation methods can be found on our sellxed website.

Payment Processing

Please pay attention to the fact that you require the activation of further options with ConCardis in order to use some of the authorisation methods.

It may be that certain authorization methods are not available for every payment method.

Alongside the introduction of PCI 3 there are additional certification requirements in case you are using the authorization method Hidden or AJAX. Please contact ConCardis for further information or switch to another authorization method.

3.7Direct Capturing of Transactions

The option "Capture" allows you to specify if you wish to debit payments directly or if you first wish to authorise them and the debit the payment at a later point.

Depending on your acquiring contract, a reservation is only guaranteed for a specific amount of time. Should you fail to debit the payment within that period, the authorisation may therefore no longer be guaranteed. Further information on this process can be found below.

Different settings between ConCardis and the module

It may be that settings saved in the payment modules overwrite settings saved in ConCardis.

3.8Uncertain Status Status

You can specifically label orders for which no 3D-Secure verification nor any other security mechanism was carried out. This allows you to manually control the order before shipment.

3.9Optional: Validation

Note: It can be that this option is not visible in your module.In this case just ignore this section.

With the option 'Validation' you can define the moment when the payment method should be made visible to the customer during the checkout process. This setting is relevant for modules where the usage depends on the customer's compliance with specific preconditions. For example, if a solvency check has to be carried out or if the payment method is only available in certain countries. You have the choice between these options:

  • Validation before the selection of the payment method: A validation verification is carried out before the customer selects the payment method. If he or she does not fulfill the requirements, the payment method is not displayed
  • Validation after selection of the payment method: The verification of the compliance occurs after the selection of the payment method and before the confirmation of the order
  • During the authorisation: The validation verification is carried out by ConCardis during the authorisation process. The payment method is displayed in any case

3.10Multi-Shop Set-Up

The payment module is designed for the usage of one ConCardis contract for several shops. It must be differentiated, however, between the case of an integrated multi-shop functionality and independent shops:

Figure 3.1: Multi-shop set-up
Licensing

In the case of independent shops, you require a payment module license for each shop. For scale prices, please contact us directly.

3.10.1Usage of the Integrated Multishop Functionality of PrestaShop

The payment module supports the multishop feature of PrestaShop. No further modifications are necessary. The module automatically recognizes the shop the order belongs to. In order for the multishop functionality to work, it is, however, necessary that the individual sub-shops within PrestaShop have been configured correctly.

3.10.2Usage of several independent PrestaShop shops

In case you wish to connect several independent shops to one contract with one contract with ConCardis, you require a sellxed payment module for each shop as well as the corresponding multi-shop module which you will find directly by the payment module.

  1. Extract the multi-shop module and open the file "router.php"
  2. Enter a shop ID of your choice in the box "Shop ID" within the main configuration of the module (e.g. shop_a and shop_b)
  3. Enter the following line into the corresponding place within the file router.php of the multi-shop module (for each shop shop_a and shop_b):
    $redirect['shop_a'] = 'https://www.your-shop.com/index.php?fc=module&module=payenginecw&controller=notification';
  4. Enter the URL below (instead of the URL mentioned above) under the point "Feedbacks" in the back-end of ConCardis: http[s]://yourshop.com/router.php
  5. Copy the file router.php into the main directory of your shop

4Settings / Configuration of Payment Methods

4.1General Information About the Payment Methods

All sellxed payment modules are delivered with the most common payment methods. In case a desired payment method is not included per default, please contact us directly.

In order to be able to use a payment method, it must be activated in your account with ConCardis as well as in your shop. Information about the configuration of the payment methods can be found further above.

Below you can find important information for specific payment methods that deviate from the standard process.

4.2Information on Payment Status

For each payment method you can define an initial payment status (status for authorized payments etc.). You hereby define the payment status for each state depending on the processing type of the order (captured, authorized, etc.). It's the initial status which the order assumes. Depending on the mutation carried out by you, the status can change.

Important info regarding Order Status

Never set the status to Pending ConCardis or any similar pending status which is implemented by the module.

4.2.1Order status "pending" / imminent payment (or similar)

Orders with the status 'pending ConCardis' are pending orders. Orders are set to that status if a customer is redirected in order to pay but hasn't returned successfully or the feedback hasn't reached your shop yet (Customer closed window on the payment page and didn't complete payment). Depending on the payment method these orders will automatically be transformed into cancelled orders and the inventory will be cleared (so long as the Cronjob is activated). How long this takes depends on the characteristics of the payment method and cannot be configured.

If you have a lot of pending orders it usually means that the notifications from your webserver to ConCardis are being blocked. In this case check the settings of your firewall and ask the Hoster to activate the IPs and User Agents of ConCardis.

4.2.2Order status "cancelled"

Orders with the status "cancelled" have either been set to that status automatically due to a timeout, as described above, or have been cancelled directly by the customer.

4.3Usage Hidden Authorisation / Alias Gateway

You have the possibility of processing credit cards without redirection to the payment page of ConCardis.

In order to be able to use this feature, you must first carry out the steps listed under Hidden Authorisation / Alias Gateway and create an API-User.

You can then activate the authorisation method 'Hidden Authorisation' for the payment methods of your choice. This procedure requires you as a merchant to fulfill the PCI-SAQ-A-EP. At no time is any credit card data saved on your server. Contact your Acquirer for more information about the SAQ and the requirements.

4.4Credit Card

For the integration you have the choice between the pre-selection in the shop; i.e. the customer chooses the card type already in the shop; or a generic integration in which case the customer only sees the option 'credit card' as a payment method and then chooses the card type on the payment page ConCardis.

Figure 4.1: No pre-selection of the card type - the type will then be chosen on the payment page.
Pre-Selection of the Payment Method

We recommend choosing the option pre-selection. This allows you to configure individual settings for each payment method and add payment fees to the various methods.

4.5PayPal

You can process PayPal directly via ConCardis. In order to do so, however, some adjustments to your PayPal account are required. Please carry out the following steps:

  1. Activate the payment module in your shop
  2. Make sure that the payment method is activated in your ConCardis account
  3. The API adjustments must be carried out in your PayPal account. The various steps are explained in the "PayPal Express Checkout Integration Guide". This document can be found in your PSP account under: Support > Integration and User Guides > Technical Guides > ConCardis PayPal Express Checkout Integration Guide .

4.6MasterPass Integration: What to keep in mind

If you integrate MasterPass as a payment method in your shop, you have two integration options: External and Standard Checkout. When using External Checkout, the customer does not have to provide address data during checkout. The customer only needs a MasterPass account and the data will be transmitted by MasterPass. In order to use this option as a merchant, you have to activate this payment method with ConCardis.

Please keep in mind, that using additional functions such as address transmission through MasterPass, may require the activation of the respective options through ConCardis aktiviert.

In order to use MasterPass in compliance with the MasterCard guidelines, please read the following information carefully before using this payment method.

4.6.1Integration Possibilities for MasterPass

MasterPass can be integrated as a normal payment method with redirection to ConCardis or as an external checkout.

4.6.1.1MasterPass as a Payment Method

If you like to integrate MasterPass as a normal payment method, activate the payment method as usual (seeConfiguration of the payment method). In this scenario the customer will first be redirected to MasterPass and then to the wallet of the issuer.

4.6.1.2MasterPass as External Checkout

If you integrate MasterPass as an external Chekout, you can minimize the steps towards the payment radically. The adress transfer and the creation of the account is processed via MasterPass. If you activate the external checkout, there appears a button in the basket with which you can jump after the login directly to the last step of the order confirmation. The creation of the account happens in the background.

For the activation of the external checkout go to Modules > ConCardis . There you'll find all settings for the external checkout:

Figure 4.1: Activation of the external checkout.

MasterPass as external checkout is not for all cases available. If this point in the manual doesn't appear, please make sure to contact us.

4.6.2Checkout: MasterPass Learn More Button

When using MasterPass as a payment method for standard checkout, it is mandatory to link to the MasterPass Learn More Page. In order to do this, navigate to Payment Method Configuration. Paste the link for the Learn More Page into the field 'Description' for the respective languages. The field 'Learn More' will now be displayed when choosing a payment method.

We have already collected the most important links for you. You only have to copy and paste the links into the description field:

  • German:<a href="https://www.mastercard.com/mc_us/wallet/learnmore/de/DE/" target="_blank">Mehr Erfahren </a>
  • French:<a href="https://www.mastercard.com/mc_us/wallet/learnmore/fr/FR/" target="_blank">apprendre plus </a>
  • English: <a href="https://www.mastercard.com/mc_us/wallet/learnmore/en/DE/" target="_blank">Learn More </a>
  • Spanish:<a href="https://www.mastercard.com/mc_us/wallet/learnmore/en/ES/" target="_blank">aprender más </a>
  • Italian:<a href="https://www.mastercard.com/mc_us/wallet/learnmore/it/IT/" target="_blank">saperne di più </a>
  • Dutch:<a href="https://www.mastercard.com/mc_us/wallet/learnmore/nl/NL/" target="_blank">Leer Meer </a>
Figure 4.1: Example for entering a description (Magento). These settings are to be found in the payment method configuration for MasterPass.
Figure 4.1: The Learn More Page link should appear in the frontend.

Links for additional languages can be found in this document: https://developer.mastercard.com/...

4.6.3Additional information

General and additional information on using the MasterPass trademark and logo in your webshop are available in the official MasterPass Mechant Branding Requirement Document. which you can access here: https://developer.mastercard.com/...

4.7Usage of the Ajax Authorization (FlexCheckout)

You have the possibility of processing credit cards without redirection to the payment page of ConCardis.

In order to be able to use this feature, you must first carry out the steps listed under Hidden Authorisation, FlexCheckout (Hosted Tokenization Page), External Checkout und Alias Manager and create an API-User.

You can then activate the authorisation method 'Ajax Authorization (FlexCheckout)' for the payment methods of your choice. At no time is any credit card data saved on your server.

5The Module in Action

Below you will find an overview over the most important features in the daily usage of the ConCardis module.

5.1Capturing of Orders

Please note

The transaction management between your shop and ConCardis is not synchronized. If you capture payments with ConCardis, the status in the shop will not be updated and a second capturing in the shop is not possible.

In order to be able to capture orders you must make sure that you have set the option 'Capturing' to 'deferred' in the payment method configuration.

Transactions can be captured in different ways. The different options are explained below.

5.1.11. Via Orders > ConCardis Transactions

You can view all transactions in the sellxed transaction table under Orders > ConCardis transactions"

Figure 5.1: 1. View Transactions via Orders > ConCardis transactions.

Open the order and then click on the small magnifying glass in den transaction information overview. By clicking Capture Button, you get into the following context.

Figure 5.1: Invoice capturing in PrestaShop

Enter the amount and quantity that you wish to capture from the customer's authorization. By clicking Capture a direct capturing of the order occurs with ConCardis.

5.1.22. Capture the transaction through the order and the ConCardis transaction tab

Open the order and then click on the small magnifying glass in the ConCardis transactions overview.

Figure 5.1: Open order and view the transaction tab.

A window will then drop down. Enter the amount of your choice that you wish to capture from the customer's authorization. By clicking Capture a direct capturing of the order occurs with ConCardis.

Figure 5.1: 2. Transaction details in the transaction tab of a specific order.

By clicking Capturing Button, you get into the following context.

Figure 5.1: Deferred/Manual capture of transactions within PrestaShop

Enter the amount or quantity choice that you wish to capture from the customer's authorization. By clicking Capture a direct capturing of the order occurs with ConCardis.

5.2Useful Transaction Information on the Order

In each order, processed via the sellxed module, you can find an overview over the most important information about the transaction as well as a transaction history.

Figure 5.1: Transaction information within PrestaShop.

5.3Place Orders in the Back-End of PrestaShop

With the PrestaShop payment module you can place orders and capture the payment directly in the shop; so called Mail Order / Telephone Order (MOTO).

  1. Go to the order overview and click on "Create New Order"
  2. A window will open up. Search for the customer for whom you wish to place an order or manually create a new customer
  3. Search for the product in question and add it to your cart
  4. Before clicking Create Order, select the payment method
  5. Depending on the authorization method that you have saved for the selected payment method, you will either be redirected to the Payment Page of ConCardis or the mask for the credit card will appear such as in the image below. Enter the customer's credit card information and click Debit the customer.
Figure 5.1: MoTo Transactions in PrestaShop

5.4Refunds

You can refund already captured transactions and automatically transmit them to ConCardis. In order to to so, open the order. You have two alternatives for refunding the money. Either you use the sellxed refund tool or the partial refund process of PrestaShop. Both processes are explained in this passage.

5.4.11. sellxed Transactiontable via Orders > ConCardis transactions

You can view all transactions in the sellxed transaction table under "Orders > ConCardis transactions"

Figure 5.1: 1. transaction table via rrders > ConCardis transactions.

Open the order and then click on the small magnifying glass in den transaction information overview. By clicking Refund Button, you get into the following context.

Figure 5.1: Refund of transactions within PrestaShop.

Just like for the capturing, you open the order and click on the magnifying glass next to the order of your choice. Enter any refund amount of your choice in the field provided for this purpose. By clicking refund the refund request will directly be sent to ConCardis and the specified amount will be credited on the customer's credit card.

Please note that you can't refund more than 100% of the original amount.

5.4.22. Refund the transaction through the order and the ConCardis transaction tab

Open the order and then click on the small magnifying glass in the ConCardis transactions overview.

Figure 5.1: Open order and view the transaction tab.

By clicking Refund Button, you get into the following context.

Figure 5.1: 2. transaction details in the transaction tab of a specific order.

By clicking Refund Button, you get into the following context.

Figure 5.1: Refund of the transaction within PrestaShop.

Enter any refund amount of your choice in the field provided for this purpose. By clicking refund the refund request will directly be sent to ConCardis and the specified amount will be credited on the customer's credit card.

Please note that you can't refund more than 100% of the original amount.

5.4.33. Refund with the PrestaShop internal/default functionality.

You can carry out refunds with the Partial Refund Process of PrestaShop based on the product quantity. After having opened the order, click on Partial Refund in the top right corner. The browser will scroll down and you can specify the amount of the partial refund. If you wish, you can also directly add the item(s) to the stock. In order to do so, click on the corresponding check-box. By clicking Partial Refund, a new window opens up.

Figure 5.1: Refund of transactions within PrestaShop.

In the following window, click 'Yes' in order to transmit the refund to ConCardis and the specified amount will be credited to the customer's credit card.

Figure 5.1: Confirm the transaction refund in PrestaShop.

Please note that you can't refund more than 100% of the original amount.

5.5Usage of the Alias Managers / Token Solution

With the Alias Manager, your customers can securely save their credit cards with ConCardis for later purchases. You can enable this by activating the option "Alias Manager" in the configuration of the Payment Method. The customer can then choose from his or her saved credit cards without having to re-enter all the details.

Figure 5.1: Alias Manager Usage Within PrestaShop.
Please pay attention!

The usage of the Alias Managers requires the activation of the correct option with ConCardis. To do so, please contact the support directly.

5.6Dynamic Template

We provide a standard skin for the usage of the dynamic template for all sellxed modules. You can activate the option by setting the option "Dynamic Template" to "Use Shop Template" in the main module. Please make sure that all settings specified under Template have been carried out in the back-end of ConCardis.

The Dynamic Template allows you to load the Payment Page of ConCardis in the layout of your shop. The customer, therefore, does not notice that he or she has been forwarded to the website of ConCardis. The template dynamically adjusts to your shop template. This, furthermore, allows you to easily integrate Mobile Skins (cf. Screenshots).

The Dynamic Template requires an SSL Certificate

In order for the Dynamic Template to work correctly with all browsers, you require an SSL certificate in your shop.

Figure 5.1: Example: The skin adapts to the layout of your shop.
Figure 5.1: Example: Dynamic Template with mobile skin

5.7One Page Checkout

The checkout of PrestaShop can be modified and reduced to one step. The sellxed modules support the standard OnePageCheckout of PrestaShop. No guarantee can be made in regards to the compatibility with third party modules.

You can activate the standard checkout by going to Preferences, Orders. Choose the option 'one-page checkout' in the drop-down menu for Order-process type.

>

5.8Setting up Cron Job

> >

In order to activate the time-controlled functions of the plugin > (such as update service, deleting pending orders, etc.) set up a > time-controlled request in your hosting provider backend using the URL which you will now find > > via Modules > ConCardis in the tab > "Extended Information". Invoking it regularly will trigger the actions.

> >

> Here we suggest you use a Cron Engine like for example href="https://www.easycron.com?ref=39190" target="_blank">EasyCron. > This allows you to open the file ( URL ) with an external service. >

6Testing

Before switching from test to live mode it is important that you test the module extensively. You can find all relevant test credit card data under: http://www.sellxed.com/de/testen.

Testing

Do not forget to switch the operating mode from test to live after having successfully tested the module.

6.1Test Data

In the following section you can find the test data for the various payment methods:
Credit Card
Card number
3750 0000 000 0007
Expiry Date
12/2018
CVC
1234
American Express
Card number
5399 9999 9999 9999
Expiry Date
12/2018
CVC
123
Mastercard
Card number
4111 1111 1111 1111
Expiry Date
12/2018
CVC
123
VISA (Without 3-D Secure Check)
Card number
4000 0000 0000 0002
Expiry Date
12/2018
CVC
123
VISA (With 3-D Secure Check)
American Express
Card number
3750 0000 000 0007
Expiry Date
12/2018
CVC
1234
American Express
MasterCard
Card number
5399 9999 9999 9999
Expiry Date
12/2018
CVC
123
Mastercard
Visa
Card number
4000 0000 0000 0002
Expiry Date
12/2018
CVC
123
VISA (With 3-D Secure Check)
Card number
4111 1111 1111 1111
Expiry Date
12/2018
CVC
123
VISA (Without 3-D Secure Check)

7Updates and Upgrades

You have direct and unlimited access to updates and upgrades during the duration of your support contract. In order to receive constant information about available updates we ask you to subscribe to our RSS feed that we publish for your module. More information regardind the subscription of this RSS feed can be found under: http://www.sellxed.com/en/updates_upgrades.

7.1Update Checklist

We ask you to strictly comply with the checklist below when doing an update:

  1. Always do a back up for your database and your files in your shop
  2. Use always a test system to test the update process.
  3. Wait until all the files are copied to the shop, clear the cache if there is one in your shop and then visit the configuration page of the main module so that the update process will be initialized.
Do not do updates directly in the live environment

Please test the update procedure first in your test shop. Our support team is able and willing to help you if you experience problems with the update process. However, if you decide to perform the update directly in your live shop there is the possibility of a downtime of the shop of more than two days depending on the availability of our support if you do not want to book our complementary support.

Depending on the version it could be that the database has to be migrated. We recommend you therefore, to perform the updates in times when the shop is not visited too frequently by your customers

7.2Update Instructions

Please always read the update instructions (as shown on the screenshot below). They can be found on the plugin page in the shop under the section change log on the lower end of the page. If there are no special remarks, you can proceed by just overwriting the files in your system

Figure 7.1: Changelog update instructions.

8Errors and their Solutions

You can find detailed information under http://www.sellxed.com/en/faq. Should you not be able to solve your problem with the provided information, please contact us directly under: http://www.sellxed.com/en/support

8.1Modul Performance

Depending on your server specs it could be that the module results to performance issues in your store. In this case we suggest to do the following:

  • Deactivate the PrestaShop Cache. We often saw already better results when the cache was disabled.
  • Deactivate the PrestaShop displayBackOfficeHeader hook. For this go to > Modules > Hooks > and disable the hook ConCardis Integration under the displayBackOfficeHeader Menu.

In case you want to undo the changes above you will need to re-install the base module again.

Figure 8.1: Disable the PrestaShop Hook.

8.2The Referrer URL appears in my Analytics Tool

When a customer and the notification are redirected via Header Redirection, the ConCardis Referrer URL might appear in your Analytics Tool thus hiding the original traffic source. However, most Analytic Tools are able to minimize this problem.

In case you are using Google Analytics as reporting tool, this step by step guide may help you to exclude the URLs: under bullet point 4.

9Compatibility with Third-Party Plugins

The plugins listed below are compatible with our payment modules and allow you to handle certain tasks in a easier way.

9.1Fee`s and discount`s within PrestaShop

To configure a ConCardis payment gateways based fee and discount you will need the following 3rd-Party plugin.
