1Introduction

This manual explains the installation, configuration and usage of the payment module for Magento and First Cash Solution.

Before beginning with the installation, please make sure that you are in possession of all necessary data:

  • You should have received a Merchant ID from First Cash Solution for the test account. Furthermore, you have received the corresponding user name and password
  • Encryption password and HMAC-Key
  • An Analytics Password which you require for logging into First Cash Solution Analytics
  • Magento payment module by sellxed.com/shop
  • Access data to your server and shop

In case you don't yet have a contract with First Cash Solution, you can gladly acquire it directly through us.

1.1Process of the Installation

In this document you will find all information important for the installation of the module. It is important that you strictly follow the check-list. Only by doing so, can a secure usage in correspondence with all security regulations be guaranteed.

  1. Basic configuration of the server including the setting up of the notify script
  2. Configuration of the basic settings of the payment module
  3. Configuration of the payment methods
  4. Carrying out of a test purchase with the attached test data at the end of this document
  5. If the test was successful, your account can be activated
Installation Service

Our payment plugins should have per default the correct settings for most of our customers' preferences. That means once you have entered the required credentials in the plugin configuration to connect your account to your website, the plugin should be fully operational. Should you be willing to receive detailed informations on a setting you do not know, you may contact our support team who will be able to assist you further.

Our support team is at your disposal during regular business hours at: http://www.sellxed.com/support. Furthermore, you have the option of ordering our installation service. We will make sure the plugin is installed correctly in your shop: http://www.sellxed.com/shop/de/integration-und-installation.html

.htaccess Directory Protection

In order to test the module, any kind of directory protection or IP blocking on your server must be deactivated. This is crucial; otherwise the payment feedback of First Cash Solution might not get through to the shop.

2Configuration of the Payment Module and the Server

In order to perform the configuration of the main module of Magento, the following information is necessary. You should have received the information from First Cash Solution.

  • First Cash Solution Live Merchant ID
  • First Cash Solution Live Encryption Key
  • First Cash Solution Live Signature Passphrase

Enter the credentials directly inside the configuration of the main module. After you performed some test payments, you can switch between Live Mode and Test Mode.

2.1Configuration of the Payment Module

For the usage of the gateway in your shop, fill in all received access data at its corresponding place in the main module and in the payment methods.

Hidden Mode

Please Note if you use hidden this poses additional PCI requirements to your shop that have to be met. Get in touch with First Cash Solution to get additional information.

Also if you use Hidden in your Module please advise First Cash Solution that they are able to configure your paynow settings accordingly.

3Module Installation and Update in the Magento Shop

3.1Installation

At this time you should already be in possession of the module. Should this not be the case, you can download the necessary files in your customer account in the sellxed shop (Menu "My Downloads Downloads"). In order to download the module in your shop, please carry out the following steps:

  1. Download the plugin. The download can be found in your sellxed.com account under "My Downloads".
  2. Unzip the archive you have just downloaded.
  3. In the unzipped folder navigate to the folder "files"
  4. For some shops there are different versions of the plugin provided. If this is the case open the folder which corresponds to your shops version.
  5. Using your preferred FTP client upload entire content of this folder into the root directory of your shop. For some shops there is a specific folder containing the plugins. If thats the case upload the plugin into this folder. Make sure that the folders aren't replaced but merely merged.
  6. If you haven't yet done so, log back into your shop.

In the following you will find the installation manual for Magento 1 as well as Magento 2

3.1.1Magento 1

Compiler Cache / Caching

Before you start the installation or after doing an update of the module, please make sure, that the compiler cache is disabled. Also make sure that you cleared the cache otherwise it could be that the settings page is not visible.

  1. Create a back-up of your shop.
  2. Extract the content of the ZIP file that you have downloaded in your sellxed.com account.
  3. Copy the entire content of the folder "files" into the main directory of the server of your shop respectively to the folder where the plugins are copied normally. In order to do so, use your usual ftp program. Make sure that the folders aren't replaced but merely merged.

3.1.2Magento 2

Im Folgenden werden die Schritte für die Installation und das Update der Extensions erklärt.

3.1.2.1Installations Requirements

Bitte beachten Sie, folgende Voraussetzungen sind für den Betrieb von Magento 2 zwingend zu erfüllen:

  1. System requirements von Magento (http://devdocs.magento.com/guides/v2.0/install-gde/system-requirements.html)
  2. Der Cron Job muss korrekt eingerichtet sein, sonst können keine Extensions installiert werden. Weitere informationen fidnen Sie hier: http://devdocs.magento.com/guides/v2.0/config-guide/cli/config-cli-subcommands-cron.html

3.1.2.2Installation

For the installation of the plugin in your Magento 2 store please follow these steps:

  1. Readiness Check

    Before uploading the plugin it is necessary to do the Readiness Check for Magento 2

    1. 1. Save this script as cw-setup.php on your copmuter.
    2. 2. Upload this cw-setup.php Script into the root directory of your Magnto 2 installation.
    3. 3. Access your server via SSH and run this command: php cw-setup.php
    4. 4. The script will present you with additional commands which you need to execute.

    About the cw-setup.php script

    The provided script generates a set of commands which should be executed to clean up Magento 2. The script itself doesn't execute anything. It only generates the the necessary commands.

  2. Upload

    Upload the content of the folder files_2 into the root directory of your server. Execute the commands provided by the cw-setup.php script again.

3.2Updates and Upgrades

You have direct and unlimited access to updates and upgrades during the duration of your support contract. In order to receive constant information about available updates we ask you to subscribe to our RSS feed that we publish for your module. More information regarding the subscription of this RSS feed can be found under: http://www.sellxed.com/en/updates_upgrades.

We only recommend an update if something doesn't work in your shop, if you want to use new feature or if there is a necessary security update.

3.2.1Update Checklist

We ask you to strictly comply with the checklist below when doing an update:

  1. Always do a back up for your database and your files in your shop
  2. Use always a test system to test the update process.
  3. Wait until all the files are copied to the shop, clear the cache if there is one in your shop and then visit the configuration page of the main module so that the update process will be initialized.
Do not do updates directly in the live environment

Please test the update procedure first in your test shop. Our support team is able and willing to help you if you experience problems with the update process. However, if you decide to perform the update directly in your live shop there is the possibility of a downtime of the shop of more than two days depending on the availability of our support if you do not want to book our complementary support.

Depending on the version it could be that the database has to be migrated. We recommend you therefore, to perform the updates in times when the shop is not visited too frequently by your customers

3.2.2Update Instructions

Please always read the update instruction. They can be found on the plugin page in the shop under the section change log on the lower end of the page. If there are no special remarks, you can proceed by just overwriting the files in your system

3.2.2.1Magento 1

  1. Download the newest version of the plugin. The download is available in your sellxed.com account under "My Downloads".
  2. Extract the ZIP file.
  3. Upload the folder files_1into the root directory of your shop.
  4. Clear the Magento cache

3.2.2.2Magento 2

  1. Download the newest version of the plugin. The download is available in your sellxed.com account under "My Downloads".
  2. Extract the ZIP file.
  3. Upload the folder files_2into the root directory of your shop.
  4. Clear the Magento cache

3.3Database Migration

This section describes how you can run the database migration script

This only needs to be done if your Magento installation shows error messages regarding missing tables or columns in the database.

3.3.1Magento 1

Clear the Magento cache

If this does not resolve the issue, remove the entry fcsolutioncw_setup from the core_resource table and clear the cache again.

3.3.2Magento 2

From the command line run the following command:

php bin/magento setup:upgrade

4Module Configuration in the Magento Shop

The configuration consists of two steps. The first step is the configuration of the main module with all the basic settings (cf. Configuration of the Main Module). During the second step you can then carry out individual configurations for each payment method . This allows for full flexibility and perfect adaptation to your processes.

Create back-ups!

Please create a back-up of the main directory of your shop. In case of problems you will then always be able to return your shop to its original state.

We furthermore recommend testing the integration on a test system. Complications may arise with third party modules installed by you. In case of questions, our support is gladly at your disposal.

4.1Configuration of the Main Module

4.1.1Magento 1

The settings for the main module can be found under System > Configuration > First Cash Solution. Enter the various options, some of which you have already specified in the configuration with First Cash Solution. Information on the functionalities as well as the impact of the individual settings can be found directly by the option.

The field "Time-Out for pending Payments" defines after how many minutes the order status should switch from pending to cancelled (0 means that nothing should be changed) if no successful feedback concerning the payment is received from First Cash Solution. This might occur e.g. if the customer has closed his or her browser. Further information on this topic can be found under Order Status.

4.1.2Magento 2

You will find the settings of the main module via Stores > Configuration > Sales > First Cash Solution > General.

Fill in the fields according to the configuration of First Cash Solution or with the data which you received directly from First Cash Solution. You can find more exact explanations regarding each option in the help text by the input boxes.

Figure 4.1: Magento 2: Configuration of the basic module. Please note, that this is an example and the settings can differ.

4.2Configuration of the Payment Method

4.2.1Magento 1

After having successfully installed the main module, you will find the individual payment modules under System > Configuration > Payment Methods. You can save individual settings for each payment method and thereby optimally adapt the payment methods to your existing processes. The most central options are described in more detail further below.

4.2.1.1Direct Capturing of Invoices

The "Invoice Creation" specifies if invoices should be captured directly or not. Captured invoices can no longer be modified. If you wish to be able to modify the ordered article for debiting, please set this option to "Deferred".

4.2.2Magento 2

After having successfully configured the main module, you will find the settings for each payment method in your shop via Stores > Sales > Payment Methods. For each payment method you can change the settings individually to optimize the payment processing in your shop.

4.2.2.1Accounting

For each payment method you need to choose whether you want to register directly or delayed. A delayed booking only reserves the amount. Therefore it is important that you follow the instructions for such transactions as listed below. Reservations are usually only valid for a few days so we recommend to register directly. The delayed booking isn't available for every payment method.

4.2.2.2Authorization Method

For some payment methods you can choose between different authorization methods. The authorization method determines how the payment form is presented in your shop. Please note that for some authorization methods with credit cards there are extended PCI requirements. (https://www.sellxed.com/en/blog/pci-300-changes).

4.3Shop ID

In the case of a multi-store set up (cf. chapter: Multi-Store), the parameter Shop ID identifies the shop's request and, therefore, redirects the feedback of First Cash Solution based on the shop ID.

4.4Order Prefix

With the option order prefix you can define your own order scheme for the transmission to First Cash Solution. This option helps you identify to which shop a transaction the back-end of First Cash Solution is related to. The tag "{id}" will automatically be replaced be the consecutive order number.

4.5Selecting the Authorisation Method

You can choose between two options of authorizing credit card payments. By selecting one of the two under the option 'Authorisation Methods', you define how you want to process the individual payment methods.

Further information on the various authorisation methods can be found on our sellxed website.

Payment Processing

Please pay attention to the fact that you require the activation of further options with First Cash Solution in order to use some of the authorisation methods.

It may be that certain authorization methods are not available for every payment method.

Alongside the introduction of PCI 3 there are additional certification requirements in case you are using the authorization method Hidden or AJAX. Please contact First Cash Solution for further information or switch to another authorization method.

4.6Direct Capturing of Transactions

The option "Capture" allows you to specify if you wish to debit payments directly or if you first wish to authorise them and the debit the payment at a later point.

Depending on your acquiring contract, a reservation is only guaranteed for a specific amount of time. Should you fail to debit the payment within that period, the authorisation may therefore no longer be guaranteed. Further information on this process can be found below.

Different settings between First Cash Solution and the module

It may be that settings saved in the payment modules overwrite settings saved in First Cash Solution.

4.7Uncertain Status Status

You can specifically label orders for which for example no 3D-Secure verification nor any other security mechanism was carried out. This allows you to manually control the order before shipment.

4.8Optional: Validation

Note: It can be that this option is not visible in your module.In this case just ignore this section.

With the option 'Validation' you can define the moment when the payment method should be made visible to the customer during the checkout process. This setting is relevant for modules where the usage depends on the customer's compliance with specific preconditions. For example, if a solvency check has to be carried out or if the payment method is only available in certain countries. You have the choice between these options:

  • Validation before the selection of the payment method: A validation verification is carried out before the customer selects the payment method. If he or she does not fulfill the requirements, the payment method is not displayed
  • Validation after selection of the payment method: The verification of the compliance occurs after the selection of the payment method and before the confirmation of the order
  • During the authorisation: The validation verification is carried out by First Cash Solution during the authorisation process. The payment method is displayed in any case

4.9Multi-Shop Set-Up

The payment module is designed for the usage of one First Cash Solution contract for several shops. It must be differentiated, however, between the case of an integrated multi-shop functionality and independent shops:

Figure 4.1: Multi-shop set-up
Licensing

In the case of independent shops, you require a payment module license for each shop. For scale prices, please contact us directly.

4.9.1Usage of the Integrated Multishop Functionality of Magento

The payment module supports the multishop feature of Magento. No further modifications are necessary. The module automatically recognises the shop the order belongs to. In order for the multishop functionality to work, it is, however, necessary that the individual sub-shops within Magento have been configured correctly.

5Settings / Configuration of Payment Methods

5.1General Information About the Payment Methods

All sellxed payment modules are delivered with the most common payment methods. In case a desired payment method is not included per default, please contact us directly.

In order to be able to use a payment method, it must be activated in your account with First Cash Solution as well as in your shop. Information about the configuration of the payment methods can be found further above.

Below you can find important information for specific payment methods that deviate from the standard process.

5.2Information on Payment Status

For each payment method you can define an initial payment status (status for authorized payments etc.). You hereby define the payment status for each state depending on the processing type of the order (captured, authorized, etc.). It's the initial status which the order assumes. Depending on the mutation carried out by you, the status can change.

Important info regarding Order Status

Never set the status to Pending First Cash Solution or any similar pending status which is implemented by the module.

5.2.1Order status "pending" / imminent payment (or similar)

Orders with the status 'pending First Cash Solution' are pending orders. Orders are set to that status if a customer is redirected in order to pay but hasn't returned successfully or the feedback hasn't reached your shop yet (Customer closed window on the payment page and didn't complete payment). Depending on the payment method these orders will automatically be transformed into cancelled orders and the inventory will be cleared (so long as the Cronjob is activated). How long this takes depends on the characteristics of the payment method and cannot be configured.

If you have a lot of pending orders it usually means that the notifications from your webserver to First Cash Solution are being blocked. In this case check the settings of your firewall and ask the Hoster to activate the IPs and User Agents of First Cash Solution.

5.2.2Order status "cancelled"

Orders with the status "cancelled" have either been set to that status automatically due to a timeout, as described above, or have been cancelled directly by the customer.

5.3Payment Methods

The modules differentiate between the standard and the professional version. In the professional version, all payment methods available for First Cash Solution are integrated. With the standard version, however, you only receive the most common payment methods. Should a desired payment method not be available, please contact us directly.

5.4MasterPass Integration: What to keep in mind

If you integrate MasterPass as a payment method in your shop, you have two integration options: External and Standard Checkout. When using External Checkout, the customer does not have to provide address data during checkout. The customer only needs a MasterPass account and the data will be transmitted by MasterPass. In order to use this option as a merchant, you have to activate this payment method with First Cash Solution.

Please keep in mind, that using additional functions such as address transmission through MasterPass, may require the activation of the respective options through First Cash Solution aktiviert.

In order to use MasterPass in compliance with the MasterCard guidelines, please read the following information carefully before using this payment method.

5.4.1Integration Possibilities for MasterPass

MasterPass can be integrated as a normal payment method with redirection to First Cash Solution or as an external checkout.

5.4.1.1MasterPass as a Payment Method

If you like to integrate MasterPass as a normal payment method, activate the payment method as usual (seeConfiguration of the payment method). In this scenario the customer will first be redirected to MasterPass and then to the wallet of the issuer.

5.4.1.2MasterPass as External Checkout

If you integrate MasterPass as an external Chekout, you can minimize the steps towards the payment radically. The adress transfer and the creation of the account is processed via MasterPass. If you activate the external checkout, there appears a button in the basket with which you can jump after the login directly to the last step of the order confirmation. The creation of the account happens in the background.

For the activation of the external checkout go to System > First Cash Solution for Magento 1 and under Stores > First Cash Solution for Magento 2 . There you'll find all settings for the external checkout:

Figure 5.1: Activation of the external checkout.

MasterPass as external checkout is not for all cases available. If this point in the manual doesn't appear, please make sure to contact us.

5.4.2Checkout: MasterPass Learn More Button

When using MasterPass as a payment method for standard checkout, it is mandatory to link to the MasterPass Learn More Page. In order to do this, navigate to Payment Method Configuration. Paste the link for the Learn More Page into the field 'Description' for the respective languages. The field 'Learn More' will now be displayed when choosing a payment method.

We have already collected the most important links for you. You only have to copy and paste the links into the description field:

  • German:<a href="https://www.mastercard.com/mc_us/wallet/learnmore/de/DE/" target="_blank">Mehr Erfahren </a>
  • French:<a href="https://www.mastercard.com/mc_us/wallet/learnmore/fr/FR/" target="_blank">apprendre plus </a>
  • English: <a href="https://www.mastercard.com/mc_us/wallet/learnmore/en/DE/" target="_blank">Learn More </a>
  • Spanish:<a href="https://www.mastercard.com/mc_us/wallet/learnmore/en/ES/" target="_blank">aprender más </a>
  • Italian:<a href="https://www.mastercard.com/mc_us/wallet/learnmore/it/IT/" target="_blank">saperne di più </a>
  • Dutch:<a href="https://www.mastercard.com/mc_us/wallet/learnmore/nl/NL/" target="_blank">Leer Meer </a>
Figure 5.1: Example for entering a description (Magento). These settings are to be found in the payment method configuration for MasterPass.
Figure 5.1: The Learn More Page link should appear in the frontend.

Links for additional languages can be found in this document: https://developer.mastercard.com/...

5.4.3Additional information

General and additional information on using the MasterPass trademark and logo in your webshop are available in the official MasterPass Mechant Branding Requirement Document. which you can access here: https://developer.mastercard.com/...

6The Module in Action

Below you will find an overview over the most important features in the daily usage of the First Cash Solution module.

6.1Capturing / Cancelling of Orders

6.1.1Magento 1

Please note:

The transaction management between your shop and First Cash Solution is not synchronised. If you capture payments with First Cash Solution, the status in the shop will not be updated and a second capturing in the shop is not possible.

6.1.1.1Case 1: Invoice Capturing Directly After the Order

In the following, the process is explained for the case that you have chosen to directly create the invoice after having placed the order and only authorise payments - not capture them directly - (further information on the configuration can be found under Creating the Invoice).

In order to capture the order, open the invoice and click "capture". If you click "Cancel", the authorisation will be cancelled.

6.1.1.2Case 2: Deferred Invoice Capturing

In case you have chosen the deferred invoice creation, you first have to create the invoice by clicking on the button "Invoice". Select "Capture online" below the total amount and then click on "capture invoice". The invoice has now been captured.

6.1.1.3Cancel of orders/transactions

In order to cancel a transaction you first have to open the invoice and click on the cancel button. Aftert that open the order and click on cancel here again. This will send the cancel of the order to First Cash Solution. Please note that you need to cancel the invoice and the order.

6.1.2Magento 2

6.1.2.1Capture Bug in Magento (v. 2.0.0)

In version 2.0.0 of Magento there is a bug. It could be that invoices cannot be captured. Please make the following adjustments in the file /vendor/magento/module-sales/Controller/Adminhtml/Order/Invoice/Capture.php:

  1. Delete the lines in the picture bellow which begin with a - .
  2. Add the lines which has been marked with a + .

Here you can find the codes to be inserted in the form of a text:

+ )->addComment( __('The credit memo has been created automatically.') );

Figure 6.1: Opening the Invoice

6.1.2.2Performing Captures

Please note

The transaction management between First Cash Solution and your shop isn't synchronized. When you capture the payments at First Cash Solution , the status is not adjusted and a second capture isn't possible in your shop.

In the configuration of the payment method you can decide whether the invoice should be captured after having been created or if only the payment is authorized. You also decide if you already want to create an invoice. If you create an invoice you can't make any adjustments for the capture.

In order to capture invoices please take the following steps:

  1. Open the order and create an invoice.
  2. If you have set the Invoice Settlement to deferred you can still make adjustments to the invoice.
  3. Click on Capture Online.
Figure 6.1: Capture options

6.2Place Orders in the Back-End of Magento

6.2.1Magneto 1

With the Magento payment module you can place orders and capture the payment directly in the shop; so called Mail Order / Telephone Order (MOTO).

  1. Go to the order overview and click on "Create New Order"
  2. The usual window for the creation of orders will be opened. Select the customer in question, the item and the address
  3. Select the preferred payment method and click on "Submit Order".
  4. Depending on the authorisation method that you have saved for the selected payment method, you will either be redirected to the Payment Page of First Cash Solution or the mask for the credit card will appear such as in the image below. Enter the credit card data of the customer.
Figure 6.1: MoTo Transactions in Magento

6.2.2Magento 2

With the Magento payment module you can trigger orders directly from your shop, so called Mail Order / Telephone Order (MOTO).

  1. Go to the overview of the order (Sales > Orders) and click on "Create New Order"at the top right.
  2. The familiar window to create an order will open. Choose the desired customer, article and address.
  3. In the payment method box, choose the desired payment method and click on "Finalize order".
  4. After that you will be redirected either to the Payment Page of First Cash Solution or you will be asked to enter your payment information in the shop, depending on your settings.

If an alias of the customer exists, you can alternatively use that for the order.

6.3Refunds

6.3.1Magento 1

You can refund already captured transactions and automatically transmit them to First Cash Solution. In order to do so, open the invoice of the captured order. By clicking on "Credit Memo" the window for refunds is opened. Enter the amount you wish to refund. By clicking on "Refund" the refund is transmitted to First Cash Solution.

Below you find a step-by-step guide including screenshots:

Figure 6.1: 1. open the invoice
Figure 6.1: 2. click on credit memo - Important - open the invoice first!.
Figure 6.1: 3. Adjust the refunding amount (see more info below Refunds Based on Quantity)
Figure 6.1: 4. To process the refund click on Refund.
Figure 6.1: Wait for the confirmation of the refund.

6.3.1.1Refunds Based on Quantity

You can make refunds based on product quantity. In order to do so, open the credit memo window and enter the amount of products you wish to refund to your customer's card

You can carry out as many individual refunds as you wish until you have reached the quantity of the original order. The status of the order then automatically switches to complete.

Figure 6.1: Overview over all Refunds

6.3.1.2Refunding of Any Amount

As each position of the order needs to be transmitted to First Cash Solution we can't support the function Adjustment Refund - meaning the refund of any amount. Only whole items can be refunded by adjusting the refund amount.

Adjusting the amount of several refunds

It is possible to carry out several refunds on an order. Please note that you can refund a maximum of 100% of the original amount. If you have already carried out a refund you need to make sure not to refund more than the initial amount by adjusting the amount and the Adjustment Fee.

6.3.2Magento 2

6.3.2.1Resolving a Current Magento Bug (v. 2.0.0)

In the 2.x version of Magento there is a bug. Please make the following adjustments to the file /vendor/magento/module-sales/Model/Order/Payment.php :

  1. Delete the lines in the picture bellow which begin with a - .
  2. Add the lines which has been marked with a + .
Figure 6.1: Adjustments so you are able to enter a credit memo.

Here you can find the codes to be inserted in the form of a text:

+ )->addComment( __('The credit memo has been created automatically.') );

6.3.2.2Performing Credits

For registered transactions you can create credits and transmit them automatically to First Cash Solution . In order to do so open an invoice of an already registered order. By clicking on "Credit Memo" a dialog will open for the refunds. Now you can adjust the number of products which you would like to credit in the credit memo dialogue.

Here you can find each step again including screenshots:

Figure 6.1: 1. Opening the Invoice
Figure 6.1: 2. Click on Credit Memo - Important the invoice needs to be opened first.
Figure 6.1: 3. Choose which products you would like to credit and click on Refund Online.

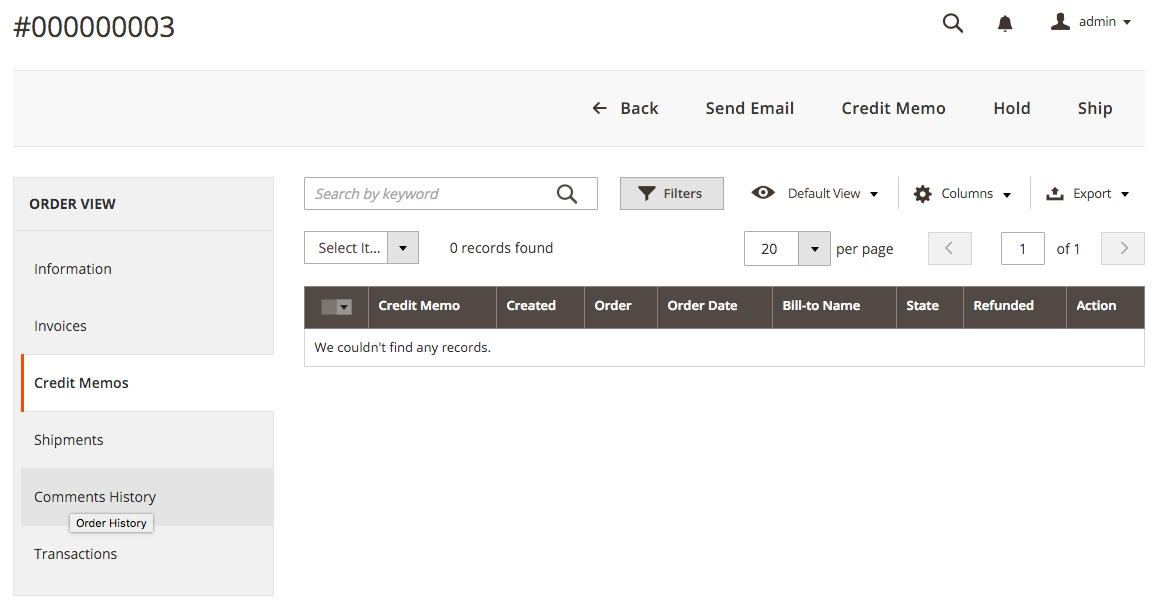

Figure 6.1: Overview of all the credits made
Adjusting the amounts for several refunds

It is possible to issue several credits on one order. Please note that you can't credit more than 100% of the original amount. If you have already issued a credit you will need to make sure you don't credit more than the original amount, by adjusting the amount and the Adjustment Fee.

6.4Useful Transaction Information on the Order

6.4.1Magento 1

In each order, processed via the sellxed module, you can find an overview over the most important information about the transaction as well as a transaction history.

Figure 6.1: Transaction Information.

6.4.2Magento 2

In each order, which was processed by a sellxed module, you will find an overview of the most important information on the transaction and transaction history.

Figure 6.1: Transaction Information.

6.5Using invoice details of a processor

6.5.1Magento 1

In the following context you can view or embed the "payment details" of for example an "Open Invoice" transaction:

6.5.1.1Magento Order confirmation (E-Mail)

The "payment information" will be visible in the default "order confirmation e-mail" of Magento.

6.5.1.2Magento Rechnung (PDF)

The "payment information" will be visible in the default Magento-Invoice.

6.5.1.3Magento-Backend (Transaction details)

You can view the payment and transaction details in Magento under Sales > Orders.

Figure 6.1: Transaction details within Magento.

6.5.1.4Magento Success-Page

Due to technical limitations, it is currently not possible to display the "payment information" here.

6.5.2Magento 2

In the following context you can view or embed the "payment details" of for example an "Open Invoice" transaction:

6.5.2.1Magento Order confirmation (E-Mail)

The "payment information" will be visible in the default "order confirmation e-mail" of Magento.

6.5.2.2Magento Rechnung (PDF)

The "payment information" will be visible in the default Magento-Invoice.

6.5.2.3Magento-Backend (Transaction details)

You can view the payment and transaction details in Magento under Sales > Orders.

6.5.2.4Magento Success-Page

Due to technical limitations, it is currently not possible to display the "payment information" here.

6.6Usage Abo Commerce / Recurring Payments

6.6.1Magento 1

Abo-Commerce increases long-term customer loyalty. Customers can choose as many products as they wish and have them ordered in cycles of their choice. The advantage for customers: products that are required regularly are automatically delivered to their home.

If you wish to offer recurring payments with Magento, you can use our extension that we've developed for you. The module can be purchased directly in our shop. Please refer to the attached manual for the configuration of the module.

6.6.2Magento 2

It is not possible to create recurring payments for Magento 2

6.7Usage of the Alias Managers / Token Solution

6.7.1Magento 1

With the Alias Manager, your customers can securely save their credit cards with First Cash Solution for later purchases. You can enable this by activating the option "Alias Manager" in the configuration of the Payment Method. The customer can then choose from their saved credit cards without having to enter all the details again.

Figure 6.1: Alias Manager Transaction
Attention

To use the Alias Manager tit may be necessary to activate certain options in your First Cash Solution account. Please contact First Cash Solution directly to do so.

6.7.1.1Deleting Customer Aliases

You can easily delete a customer's alias by opening the customer in the backend of Magento. Switch to the tab First Cash Solution Alias and delete the saved alias directly here.

Figure 6.1: Delete previously saved aliases of your customers.

6.7.2Magento 2

Due to the integration of the Alias Manager the customers credit card data can be saved for later purchases. The customer can choose between the cards that have already been saved and won't have to enter all of credit card data again.

6.7.2.1Activating the Alias Manager / Token

In order for you to be able to use this you will need activate the option "Alias Manager" in the payment methods.

Figure 6.1: Alias Manager Transaction

6.7.2.2Customers Deleting the Token

In Magento 2 you can allow your customers to manage the aliases in their customer account at "My First Cash Solution Aliases / Token"". This feature can also be enabled in the settings of the payment method

Figure 6.1: Activating the Alias Manager for Customers.

6.8Tax Calculation Settings

6.8.1Magento 1

To ensure that the taxes are calculated correctly and transmitted correctly to a third party invoice provider inside Magento please make sure that you set the calculation settings in the menu under System > Configuration > Tax as showed in the screenshot below.

Figure 6.1: Recommended tax calculation settings for Magento.

Please also make sure that inside the settings of your promotion in the tab "Actions" the discount is not applied to the shipping amount as Magento is not correctly transmitting the tax rate there.

6.9OneStepCheckout

6.9.1Magento 1

The checkout of Magento can be modified and reduced to one step. The so called OnePageCheckout. The sellxed modules support the most important OnePageCheckout extensions. If you are thinking of using a OneStepCheckout extension in combination with the sellxed First Cash Solution Magento, please make sure that you are using one of the following:

6.9.2Magento 2

There is no official support for any OnePageCheckout module for Magento 2.

6.10Set-up a cron job to activate the timed operations

6.10.1Magento 1

To activate the timed operations of the plugin (e.g. update service, deleting pending orders, etc.) make sure that you set up the Magento Cron engine. Especially the update function allows you to automatically retrieve additional information or changes of your order directly via the API of First Cash Solution. Please note it could be that in order to use the update feature it may be necessary that First Cash Solution activates additional options in your account.

The module uses the standard cron engine of Magento. More information regarding the set up can be found here.

Here we suggest you use a Cron Engine like for example EasyCron. This allows you to open the file (URL) with an external service.

6.10.2Magento 2

The module uses the standard cron engine of Magento 2. More information regarding the set up can be found here.

6.11Magento 1 API Manual

Via API, the sellxed modules provide plenty of information on a transaction. The following section describes which calls are possible and what information is provided.

6.11.1General Information on Using the API

General information on using the Magento SOAP API can be found here: http://www.magentocommerce.com/api/soap/introduction.html

6.11.2API Calls

This overview shows the API Versions and which API Calls they support.

6.11.2.1API V1

  • $client->call($session, 'fcsolutioncw_transaction.list'); //List of all transactions
  • $client->call($session, ‘fcsolutioncw_transaction.info', {transactionsId}); // Single Transaction

6.11.2.2API V2

  • $client->fcsolutioncwTransactionList($session); //List of all transactions
  • $client->fcsolutioncwTransactionInfo($session, {transactionsId}); //Single Transaction

6.11.2.3XML-RPC

  • $client->call('call', array($session, 'fcsolutioncw_transaction.list')); //List of all transactions
  • $client->call('call', array($session, 'fcsolutioncw_transaction.info', {transactionsId})); //Single Transaction

6.11.2.4REST

  • $this->callApi(‘fcsolutioncw/transactions'); //List of all transactions
  • $this->callApi('fcsolutioncw/transactions/{transactionsId}'); //Single Transaction

7Testing

Before switching from test to live mode it is important that you test the module extensively. You can find all relevant test credit card data under: http://www.sellxed.com/de/testen.

Testing

Do not forget to switch the operating mode from test to live after having successfully tested the module.

7.1Test Data

In the following section you can find the test data for the various payment methods:
Credit Card
Card number
5399999999999999
Expiry Date
12/2020
CVC
123
Mastercard
Card number
4900000000000003
Expiry Date
12/2020
CVC
123
Visa
Credit Card (Be2Bill)
Card number
5399999999999999
Expiry Date
12/2020
CVC
123
Mastercard
Card number
4900000000000003
Expiry Date
12/2020
CVC
123
Visa
PayU CEE
Card number
4355084355084358
Expiry Date
12/2020
CVC
000
Visa
Open Invoice
Procedure
Use any valid German address. The first two attempts are succesful. The third will fail.
BillPay
Company
Must be empty
Firstname
Paul
Lastname
Positiv
Street
Teststr. 4
Post Code
49084
City
Osnabrück
Phone
095198009
BillSAFE: Accepted
Test Data
http://developers.klarna.com/en/testing/invoice-and-account
Klarna
Customer ID
customer1
Company
Must be empty
Gender
FEMALE
Firstname
Julia
Lastname
Tester
Street
Aalener Str. 57
Post Code
73492
City
Rainau
Country
DE
Phone
07361889969
E-Mail
customerEmail@domain.com
Birtday
1987-10-25
Paymorrow: Accepted
Last Name
Wischnewski
First Name
Hans-Jürgen
Birtday
1973-12-27
Street
Müllerstraße 137
Postcode
13353
City
Berlin
Country
DE
Phone
03018425165
RatePay: B2C
Company Name
Imperium UG
Sales Tax Number
DE123456789
Last Name
Descartes
First Name
René
Birtday
1973-12-27
Street
Odeonplatz 1
Postcode
80539
City
München
Country
DE
Phone
08945687541
RatePay: B2B
Direct Debits
Direct
Last Name
Wischnewski
First Name
Hans-Jürgen
Birtday
1973-12-27
Street
Müllerstraße 137
Postcode
13353
City
Berlin
Country
DE
Phone
03018425165
RatePay: B2C
Company Name
Imperium UG
Sales Tax Number
DE123456789
Last Name
Descartes
First Name
René
Birtday
1973-12-27
Street
Odeonplatz 1
Postcode
80539
City
München
Country
DE
Phone
08945687541
RatePay: B2B
BIC
BYLADEM1ROS
IBAN
DE36711500000009290701
InterCard: Accepted
Customer ID
customer1
Company
Must be empty
Gender
FEMALE
Firstname
Julia
Lastname
Tester
Street
Aalener Str. 57
Post Code
73492
City
Rainau
Country
DE
Phone
07361889969
E-Mail
customerEmail@domain.com
Birtday
1987-10-25
Paymorrow: Accepted

7.2Testing - First Cash Solution Simulation Mode

Any kind of payment method can be tested with our modules. The "Operation Mode" corresponds to the simulation mode with First Cash Solution. Payments with a total of less than 10'000 EUR are always accepted.

8Errors and their Solutions

You can find detailed information under http://www.sellxed.com/en/faq. Should you not be able to solve your problem with the provided information, please contact us directly under: http://www.sellxed.com/en/support

8.1Module is not shown

If the module is not shown even though the files have been downloaded onto the server correctly, please check the following:

  • The local.xml can be found in the /app/etc directory
  • Make sure disable_local_modules is set to ‚false‘

8.2The Referrer URL appears in my Analytics Tool

When a customer and the notification are redirected via Header Redirection, the First Cash Solution Referrer URL might appear in your Analytics Tool thus hiding the original traffic source. However, most Analytic Tools are able to minimize this problem.

In case you are using Google Analytics as reporting tool, this step by step guide may help you to exclude the URLs: under bullet point 4.

9Compatibility with Third-Party Plugins

The plugins listed below are compatible with our payment modules and allow you to handle certain tasks in a easier way.

9.1Magento 1

9.1.1Fees and discounts within Magento

To configure a First Cash Solution payment gateway based fee and discount, you will need the following 3rd-Party plugin.

9.2Birthday and gender in Magento 1

For certain payment service providers it is necessary to check the birthday an the gender of a customer. Magento 1 does not check this by default. this check can be enabled under "Go to System > Configuration | Customers > Customer Configuration > Name and Address Options".

9.3Birthday and gender in Magento 2

For certain payment service providers it is necessary to check the birthday an the gender of a customer. Magento 2 does not check this by default. this check can be enabled under "Stores > Configuration | Customers > Customer Configuration > Name and Address Options".

10Error Logging

The module will log different unexpected errors or information depending on the configured level. If there is any issue with the module, this log can help identify the cause.

10.1Log Levels

You can configure the log level in the First Cash Solution settings. The store log setting does not affect these log messages.

  • Error: Logs unexpected errors only. (Default)
  • Info: Logs extended information.
  • Debug: Logs information helpful for debugging.

10.2Log Location

The log file is stored in the Magento log directory. (Default Path: {shopRootDirectory}/var/log)

11Advanced Information

This section of the manual is for advanced usage of the module. The content is for advanced users with special requirements. Everything in this section is optional and not required for the daily usage of the module.

11.1Transaction Object

This section describes how to extract information from a transaction, if you need it for further processing. E.g. You require more information of the transaction for further processing an order in your erp system.

The code snippets in this section assume your script resides in the root folder of the shop with the default shop folder structure.

11.1.1Magento 1

Initialize the shops core functions.
define('MAGENTO_ROOT', getcwd());
$mageFilename = MAGENTO_ROOT . '/app/Mage.php';
require_once $mageFilename;
Mage::setIsDeveloperMode(true);
ini_set('display_errors', 1);
umask(0);
Mage::app();
Now you can load the transaction and then extract the transactionObject.
Load the transaction object by Id:
$dbtransaction = Mage::getModel('fcsolutioncw/transaction')->load($transactionId);
$transactionObject = $dbtransaction->getTransactionObject();
Load the transaction object by Order Number:
$dbtransaction = Mage::getModel('fcsolutioncw/transaction')->load($orderId,'transaction_external_id');
$transactionObject = $dbtransaction->getTransactionObject();

11.1.2Magento 2

Initialize the shops core functions.
use Magento\Framework\App\Bootstrap;
require __DIR__ . '/app/bootstrap.php';
$bootstrap = Bootstrap::create(BP, $_SERVER);
$obj = $bootstrap->getObjectManager();
$state = $obj->get('Magento\Framework\App\State');
$state->setAreaCode('frontend');
Get the transaction factory.
$factory = $obj->get('Customweb\FCSolutionCw\Model\Authorization\TransactionFactory')->create();
Now you can load the transaction and then extract the transactionObject.
Load the transaction object by Id:
$dbTransaction = $factory->load($transactionId, 'entity_id');
$transactionObject = $dbTransaction->getTransactionObject();
Load the transaction object by Order Number:
$dbTransaction = $factory->load($orderId, 'order_id');
$transactionObject = $dbTransaction->getTransactionObject();
Load the transaction object by Payment Id:
$dbTransaction = $factory->load($paymentId, 'payment_id');
$transactionObject = $dbTransaction->getTransactionObject();
